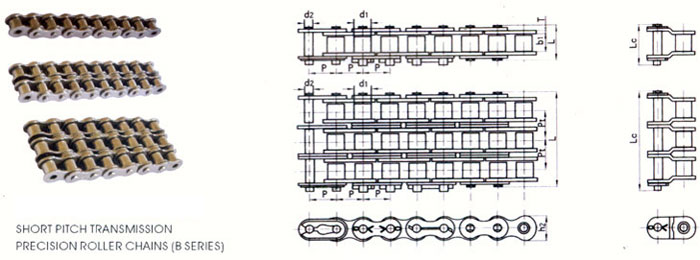

传动用短节距精密滚子链（B系列）
商品编号：chain2
描述
|
O 链号
|
节距 |
滚子直径
|
内节内宽
|
销轴直径
|
链条通道高度
|
内链板高度
|
排距
|
销轴长度
|
极限拉伸载荷
|
每米重量
|
|
|
p
|
d1(max)
|
b1(min)
|
d2(max)
|
h1(min)
|
h2(max)
|
Pt
|
L(max)
|
Q(min)
|
q≈
|
||
|
mm |
in
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
kN
|
kg/m
|
|
|
06B-1
06B-2 06B-3 |
9.525
|
3/8"
|
6.35
|
5.72
|
3.28
|
8.52
|
8.26
|
10.24
|
13.5
23.8 34.0 |
8.9
16.9 24.9 |
0.4
0.8 1.2 |
|
08B-1
08B-2 08B-3 |
12.70
|
1/2"
|
8.51
|
7.75
|
4.45
|
12.07
|
11.81
|
13.92
|
17.0
31.0 44.9 |
17.8
31.1 44.5 |
0.7
1.4 2.1 |
|
10B-1
10B-2 10B-3 |
15.875
|
5/8"
|
10.16
|
9.65
|
5.08
|
14.99
|
14.73
|
16.59
|
19.6
36.2 52.8 |
22.2
44.5 66.7 |
1.0
1.9 2.8 |
|
12B-1
12B-2 12B-3 |
19.05
|
3/4"
|
12.07
|
11.68
|
5.72
|
16.39
|
16.13
|
19.46
|
22.7
42.2 61.7 |
28.9
57.8 86.7 |
1.2
2.4 3.5 |
|
16B-1
16B-2 16B-3 |
25.40
|
1"
|
15.88
|
17.02
|
8.28
|
21.34
|
21.08
|
31.88
|
36.1
68.0 99.9 |
60
106 160 |
2.7
5.4 8.2 |
|
20B-1
20B-2 20B-3 |
31.75
|
1 1/4”
|
19.05
|
19.56
|
10.19
|
26.68
|
26.42
|
36.45
|
43.2
79.7 116.1 |
95
170 250 |
3.7
7.2 10.9 |
|
24A-1
24A-2 24A-3 |
38.10
|
1 1/2”
|
25.40
|
25.40
|
14.63
|
33.73
|
33.40
|
48.36
|
53.4
101.8 150.2 |
160
280 425 |
7.1
13.4 20.1 |
|
28B-1
28B-2 28B-3 |
44.45
|
1 3/4”
|
27.94
|
30.99
|
15.90
|
37.46
|
37.08
|
59.56
|
65.1
124.7 184.3 |
200
360 530 |
8.5
16.6 24.9 |
|
32B-1
32B-2 32B-3 |
50.80
|
2"
|
29.21
|
30.99
|
17.81
|
42.72
|
42.29
|
58.55
|
67.4
126.0 184.5 |
250
450 670 |
10.3
21.0 31.6 |
|
40B-1
40B-2 40B-3 |
63.50
|
2 1/2”
|
39.37
|
38.10
|
22.89
|
53.49
|
52.96
|
72.29
|
82.6
154.9 227.2 |
355
630 950 |
16.4
32.0 48.1 |
|
48B-1
48B-2 48B-3 |
76.20
|
3"
|
48.26
|
45.72
|
29.24
|
64.52
|
63.88
|
91.21
|
99.1
190.4 281.6 |
560
1000 1500 |
25.0
50.0 75.0 |
|
56B-1
56B-2 |
88.90
|
3 1/2”
|
53.98
|
53.34
|
34.32
|
78.64
|
77.85
|
106.60
|
114.6
221.2 |
850
1600 |
35.0
70.0 |
