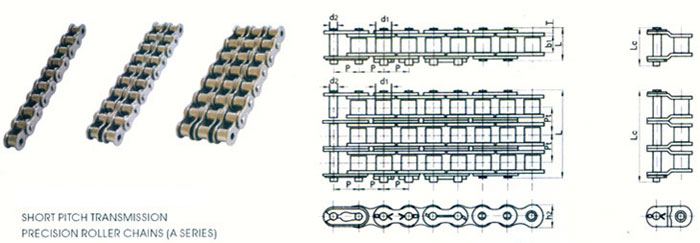

传动用短节距精密滚子链（A系列）
商品编号：chain1
描述
|
ISO 链号 |
ANSI 链号
|
节距
|
滚子直径
|
内节外宽
|
销轴直径
|
链条通道高度
|
内链板高度
|
排距
|
销轴长度
|
极限拉伸载荷
|
每米重量
|
|
|
P
|
d1(min)
|
b1(man)
|
d2(max)
|
h1(min)
|
h2(max)
|
Pt
|
L(max)
|
Q(min)
|
q≈
|
|||
| mm | in |
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
kN
|
kg/m
|
||
|
06C-1
06C-2 06C-3 |
35-1
35-2 35-3 |
9.525
|
3/8"
|
6.35
|
5.72
|
3.28
|
8.50
|
8.26
|
10.24
|
13.5
23.8 34.0 |
8.9
16.9 24.9 |
0.4
0.8 1.2 |
|
08A-1
08A-2 08A-3 |
40-1
40-2 40-3 |
12.70
|
1/2"
|
7.92
|
7.85
|
3.98
|
12.33
|
12.07
|
14.38
|
17.8
32.3 46.7 |
13.8
27.6 41.4 |
0.7
1.4 2.1 |
|
10A-1
10A-2 10A-3 |
50-1
50-2 50-3 |
15.875
|
5/8"
|
10.16
|
9.40
|
5.09
|
15.35
|
15.09
|
18.11
|
21.8
39.9 57.9 |
21.8
43.6 65.4 |
1.0
2.0 3.0 |
|
12A-1
12A-2 12A-3 |
60-1
60-2 60-3 |
19.05
|
3/4"
|
11.91
|
12.57
|
5.96
|
18.34
|
18.08
|
22.78
|
26.9
49.8 72.6 |
31.1
62.3 93.4 |
1.5
3.0 4.5 |
|
16A-1
16A-2 16A-3 |
80-1
80-2 80-3 |
25.40
|
1"
|
15.88
|
15.75
|
7.94
|
24.39
|
24.13
|
29.29
|
33.5
62.7 91.9 |
55.6
111.2 166.8 |
2.6
5.2 7.8 |
|
20A-1
20A-2 20A-3 |
100-1
100-2 100-3 |
31.75
|
1 1/4"
|
19.05
|
18.90
|
9.54
|
30.48
|
30.18
|
35.76
|
41.1
77.0 113.0 |
86.7
173.5 260.2 |
3.8
7.6 11.4 |
|
24A-1
24A-2 24A-3 |
120-1
120-2 120-3 |
38.10
|
1 1/2"
|
22.23
|
25.22
|
11.11
|
36.55
|
36.20
|
45.44
|
50.8
96.3 141.7 |
124.6
249.1 373.1 |
5.6
11.2 16.8 |
|
28A-1
28A-2 28A-3 |
140-1
140-2 140-3 |
44.45
|
1 3/4"
|
25.40
|
25.22
|
12.71
|
42.67
|
42.24
|
48.87
|
54.9
103.6 152.4 |
169.0
338.1 507.1 |
7.5
15.0 22.5 |
|
32A-1
32A-2 32A-3 |
160-1
160-2 160-3 |
50.80
|
2"
|
28.58
|
31.55
|
14.29
|
48.74
|
48.26
|
58.55
|
65.5
124.2 172.9 |
222.4
444.8 667.2 |
10.1
20.2 30.8 |
|
36A-1
36A-2 36A-3 |
180-1
180-2 180-3 |
57.15
|
2 1/4"
|
35.71
|
35.48
|
17.46
|
54.66
|
54.31
|
65.84
|
73.9
140.0 206.0 |
280.2
560.5 840.7 |
13.4
29.2 38.2 |
|
40A-1
40A-2 40A-3 |
200-1
200-2 200-3 |
63.50
|
2 1/2"
|
39.68
|
37.85
|
19.85
|
60.95
|
60.33
|
71.55
|
80.3
151.9 223.5 |
347.0
693.9 1040.9 |
15.8
32.0 48.0 |
|
48A-1
48A-2 48A-3 |
240-1
240-2 240-3 |
76.20
|
3"
|
47.63
|
47.35
|
23.81
|
73.13
|
72.39
|
87.83
|
95.5
183.4 271.3 |
500.4
1000.8 1501.3 |
22.6
46.0 68.0 |
